MATH3701 Statistical Modelling - 2 Essentials of Normal Linear Models

2.1 Overview

In many fields of application, we might assume the response variable is normally distributed. For example: heights, weights, log prices, etc.

The data¹ in Table 2.1 record the birth weights of 12 girls and 12 boys and their gestational ages (time from conception to birth).

Table 2.1: Gestational ages (in weeks) and birth weights (in grams) for 24 babies (12 girls and 12 boys).

Girls
Gestational Age	Birth weight
40	3317
36	2729
40	2935
37	2754
42	3210
39	2817
40	3126
37	2539
36	2412
38	2991
39	2875
40	3231

Boys
Gestational Age	Birth weight
40	2968
38	2795
40	3163
35	2925
36	2625
37	2847
41	3292
40	3473
37	2628
38	3176
40	3421
38	2975

A key question is: can we predict the birth weight of a baby born at a given gestational age? Figure 2.1 shows initial exploratory plots.

Focus on modelling quiz

Test your knowledge recall and application to reinforce basic ideas and prepare for similar concepts later in the module.

Code

par(mar=c(4,4,0,1))

birthweight = read.table("https://www.richardpmann.com/MATH3701/Datasets/birthwt-numeric.txt", header=T)

weight = birthweight$weight
age    = birthweight$age
sex    = birthweight$sex

hist(weight, breaks=6, probability = T, main = "",
     xlab = "Birth weight (grams)")

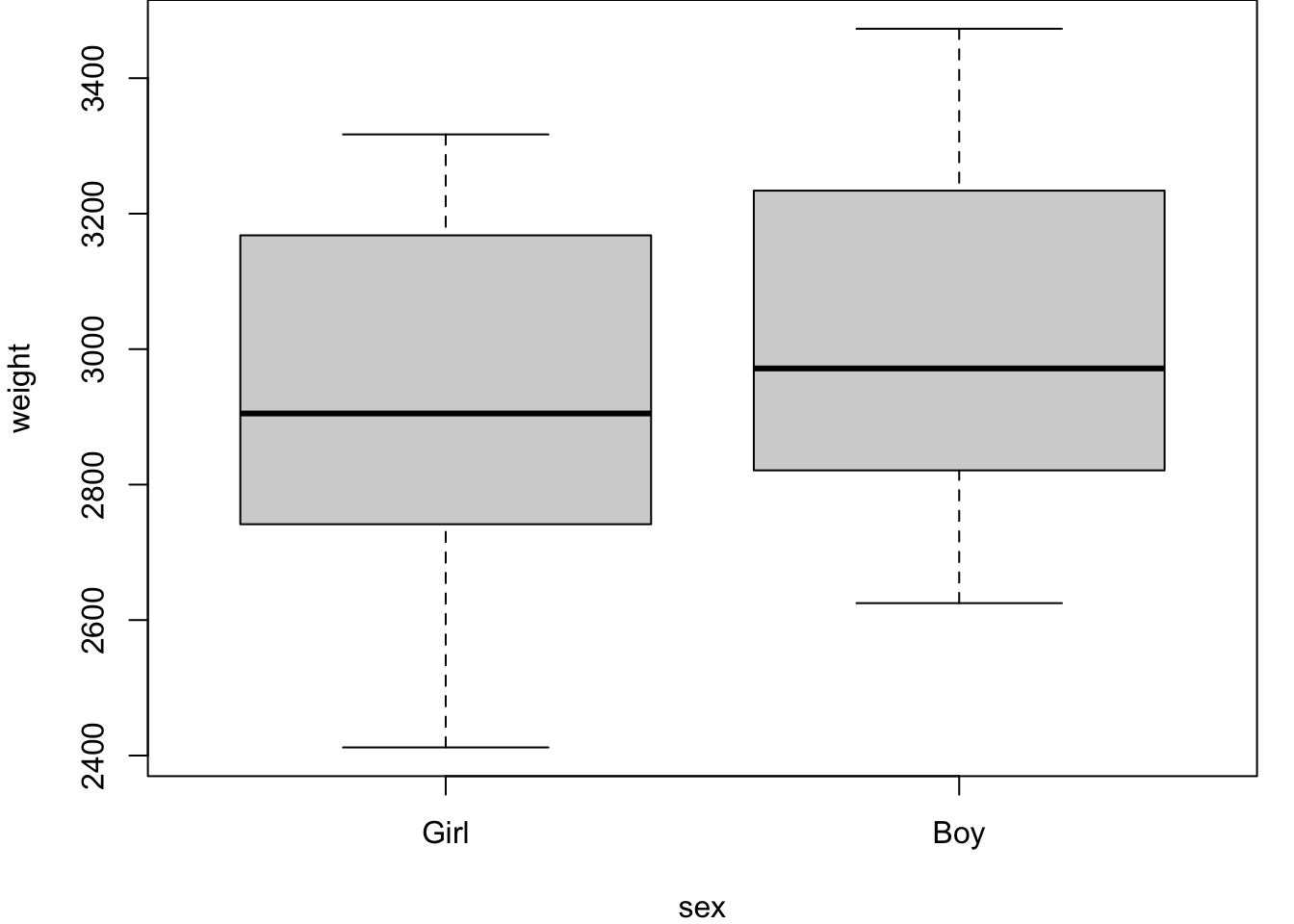

boxplot(weight~sex, names=c("Girl", "Boy"))

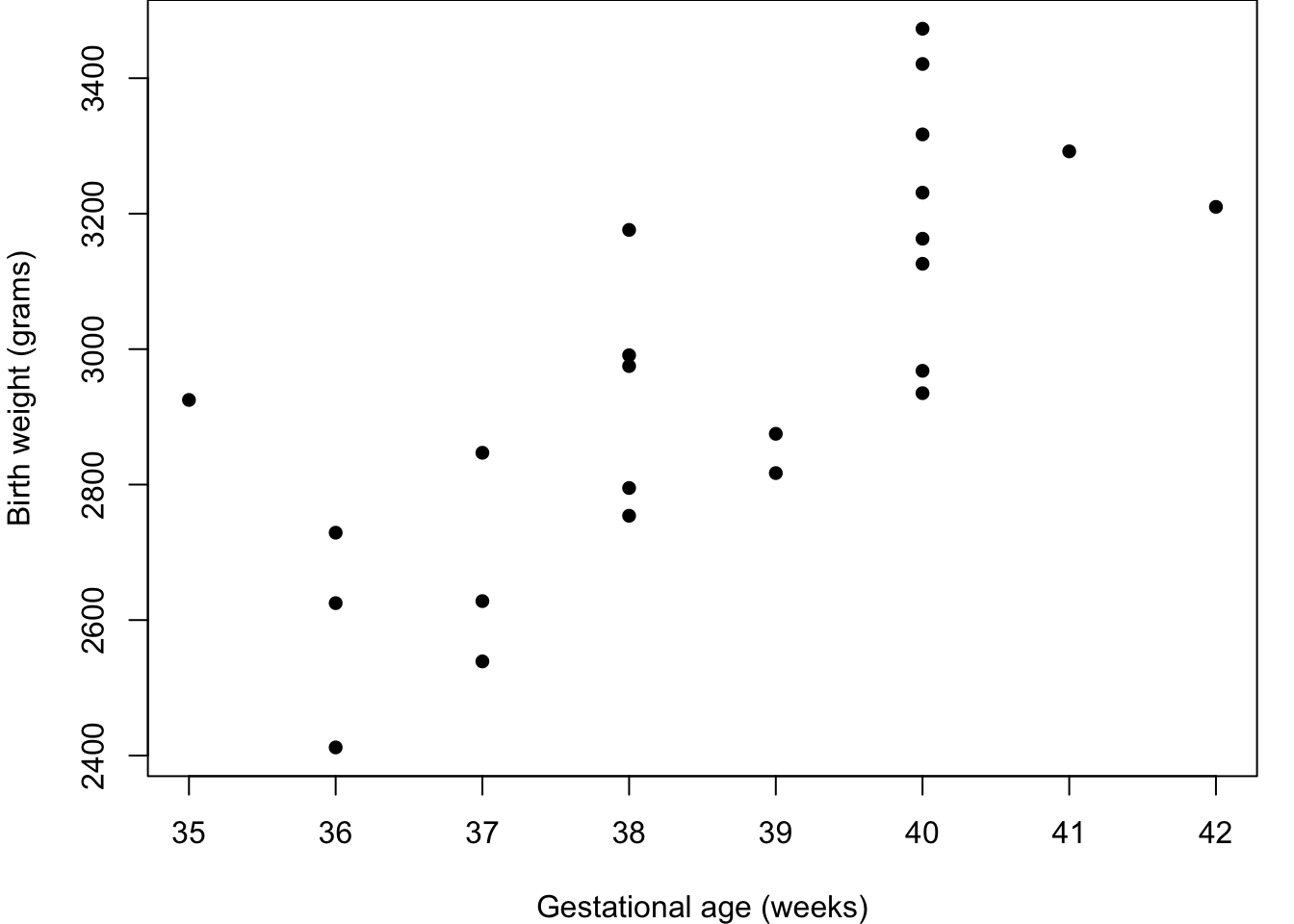

plot(age, weight, pch=16,
     xlab = "Gestational age (weeks)",
     ylab = "Birth weight (grams)")

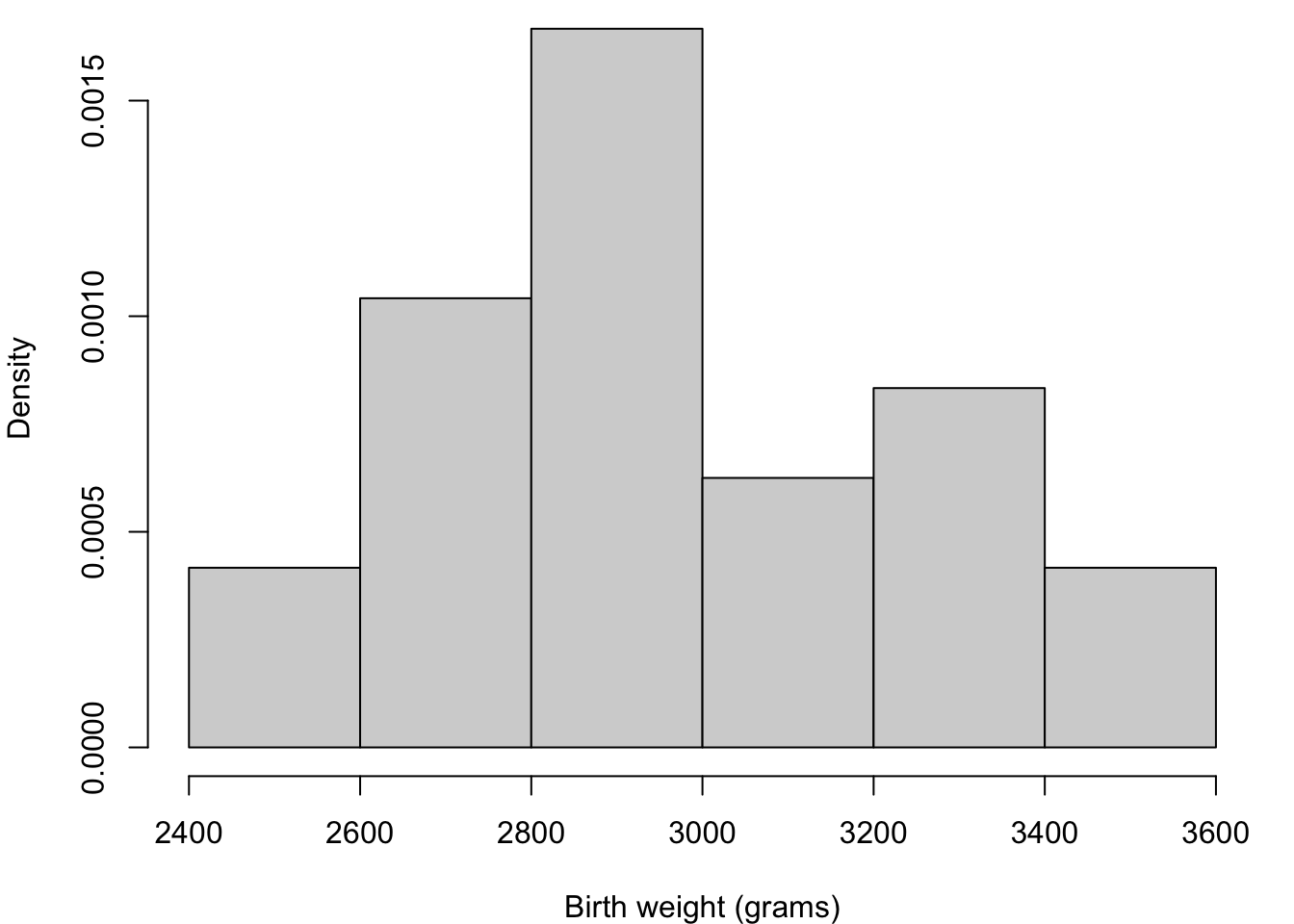

The histogram shows a spread around 2800–3000 g; the boxplot indicates slightly higher birth weights for boys; and the scatter plot shows an increasing relationship with gestational age. Together, these suggest that both gestational age and sex are likely to be useful predictors of birth weight.

2.2 Linear models

We consider four nested candidate models:

\(\texttt{Model 0}:\)	\(\texttt{Weight}=\alpha\)
\(\texttt{Model 1}:\)	\(\texttt{Weight}=\alpha + \beta\cdot\texttt{Age}\)
\(\texttt{Model 2}:\)	\(\texttt{Weight}=\alpha + \beta\cdot\texttt{Age}+\gamma\cdot\texttt{Sex}\)
\(\texttt{Model 3}:\)	\(\texttt{Weight}=\alpha + \beta\cdot\texttt{Age}+\gamma\cdot\texttt{Sex} + \delta\cdot\texttt{Age}\cdot\texttt{Sex}\)

Here, \(\texttt{Weight}\) is the response variable and \(\texttt{Age}\) (continuous) and \(\texttt{Sex}\) (a dummy variable: 0 for girls, 1 for boys) are the explanatory variables. Each model is a special case of the next; such models are called nested.

\(\gamma\) is the main effect of \(\texttt{Sex}\): the difference in birth weight between boys and girls at the same gestational age. \(\delta\) is the interaction between \(\texttt{Age}\) and \(\texttt{Sex}\): it captures whether the effect of gestational age on birth weight differs between boys and girls.

Code

par(mar=c(4,4,0,1))

birthweight = read.table("https://www.richardpmann.com/MATH3701/Datasets/birthwt.txt", header=T)
weight = birthweight$weight
age    = birthweight$age
sex    = as.integer(birthweight$sex == "M")  # 1=Male, 0=Female

plot(age, weight, pch=16,
     xlab = "Gestational age (weeks)", ylab = "Birth weight (grams)")

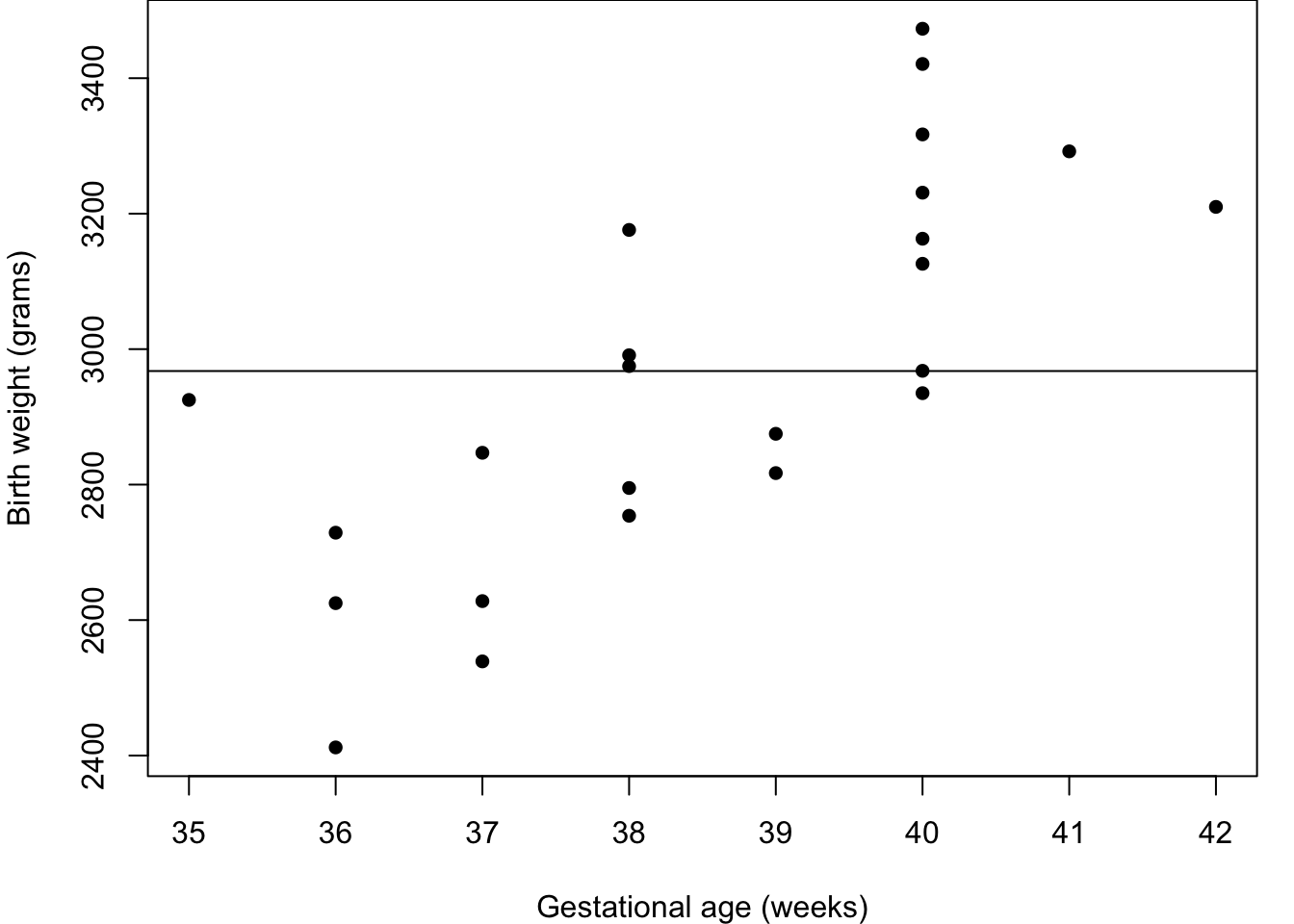

abline(h=mean(weight))

plot(age, weight, pch=16,
     xlab = "Gestational age (weeks)", ylab = "Birth weight (grams)")

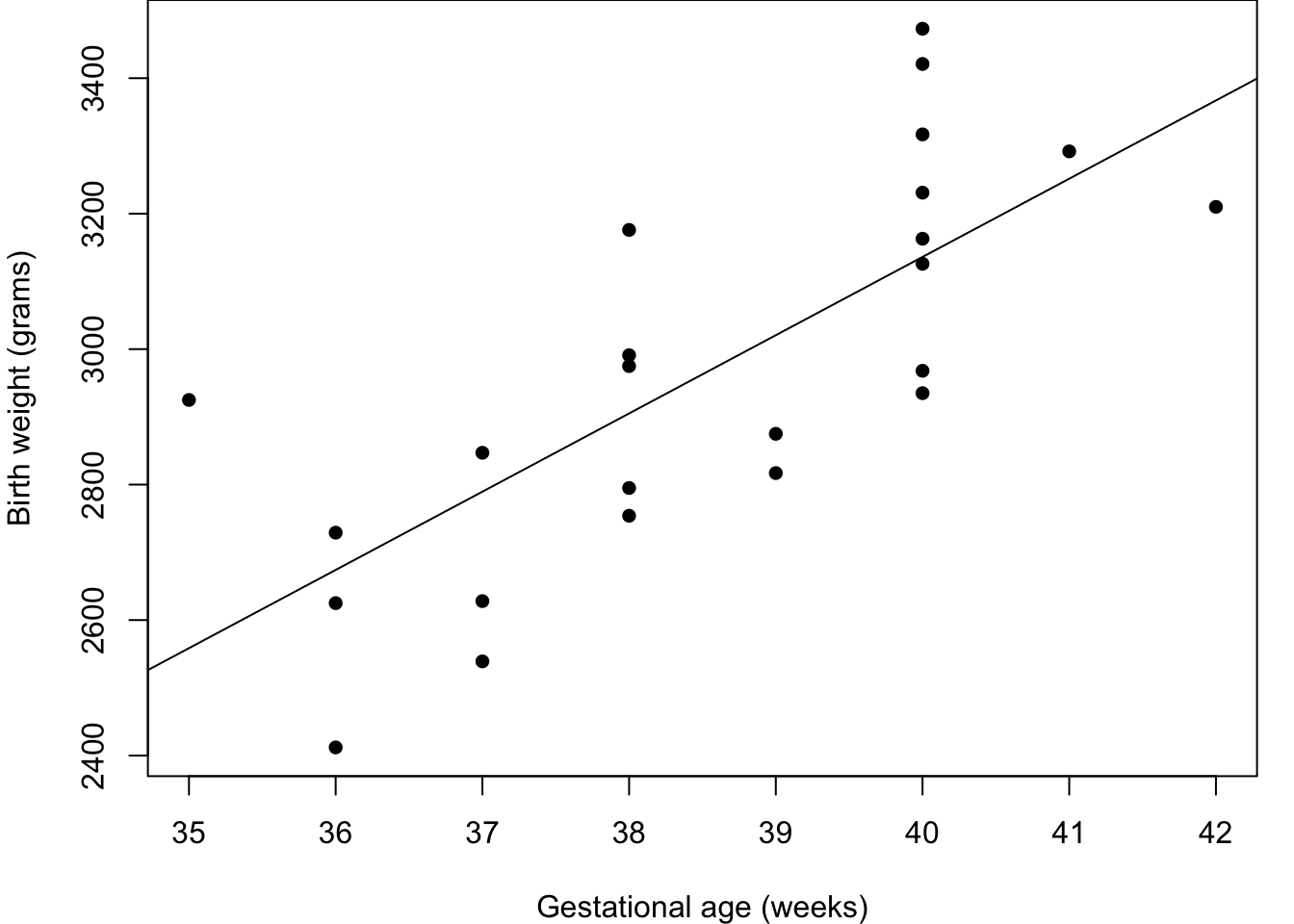

M1.fit = lm(weight~age)
abline(M1.fit$coefficients[1], M1.fit$coefficients[2])

plot(age, weight, pch=15-11*sex, col=2-sex,
     xlab = "Gestational age (weeks)", ylab = "Birth weight (grams)")
legend(41, 2800, c("Girl","Boy"), col=c(2,1), pch=c(15,4))

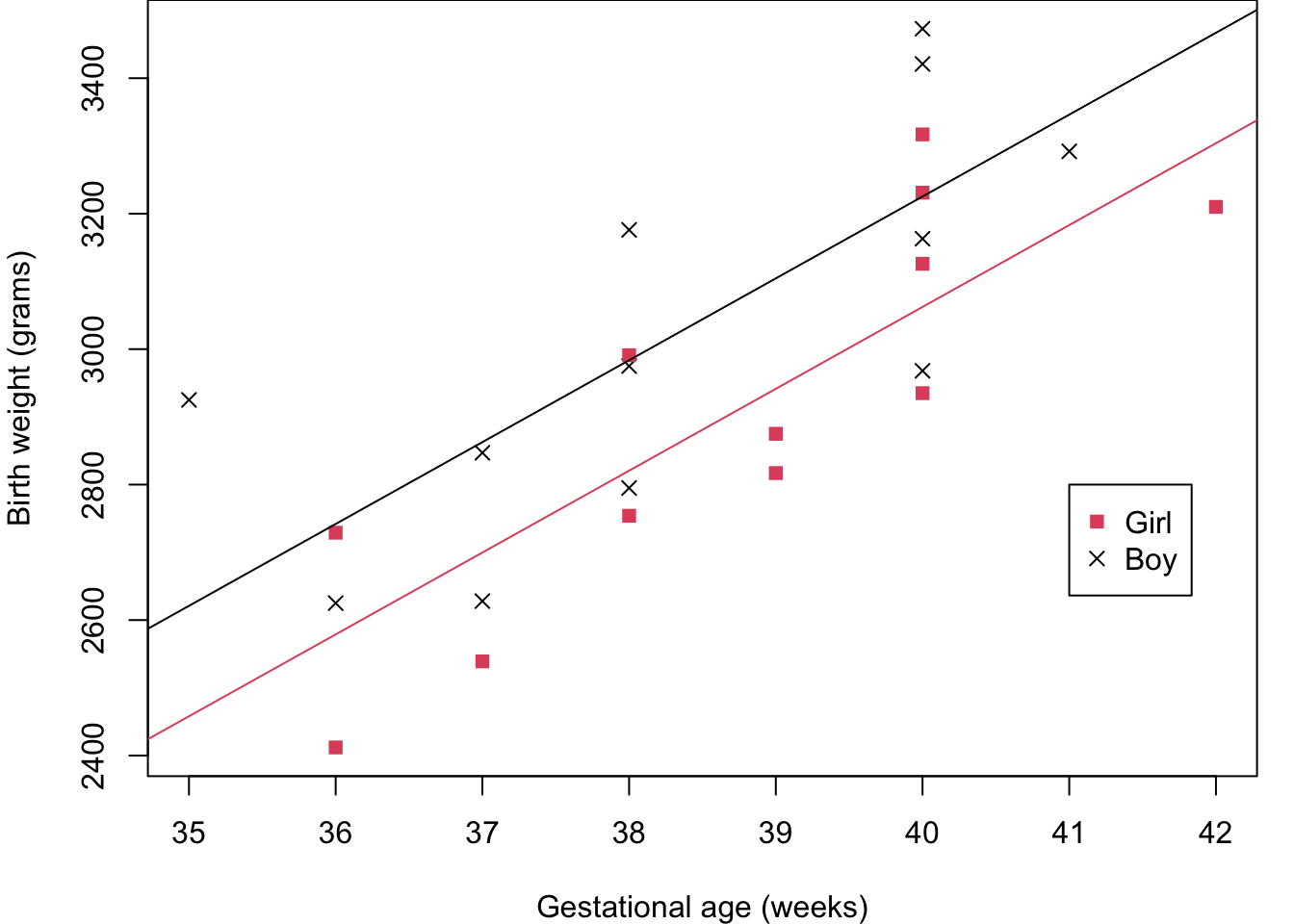

M2.fit = lm(weight~age+sex)
abline(M2.fit$coefficients[1],                         M2.fit$coefficients[2], col=2)
abline(M2.fit$coefficients[1]+M2.fit$coefficients[3],  M2.fit$coefficients[2], col=1)

plot(age, weight, pch=15+sex, col=2-sex,
     xlab = "Gestational age (weeks)", ylab = "Birth weight (grams)")
legend(41, 2800, c("Girl","Boy"), col=c(2,1), pch=c(15,16))

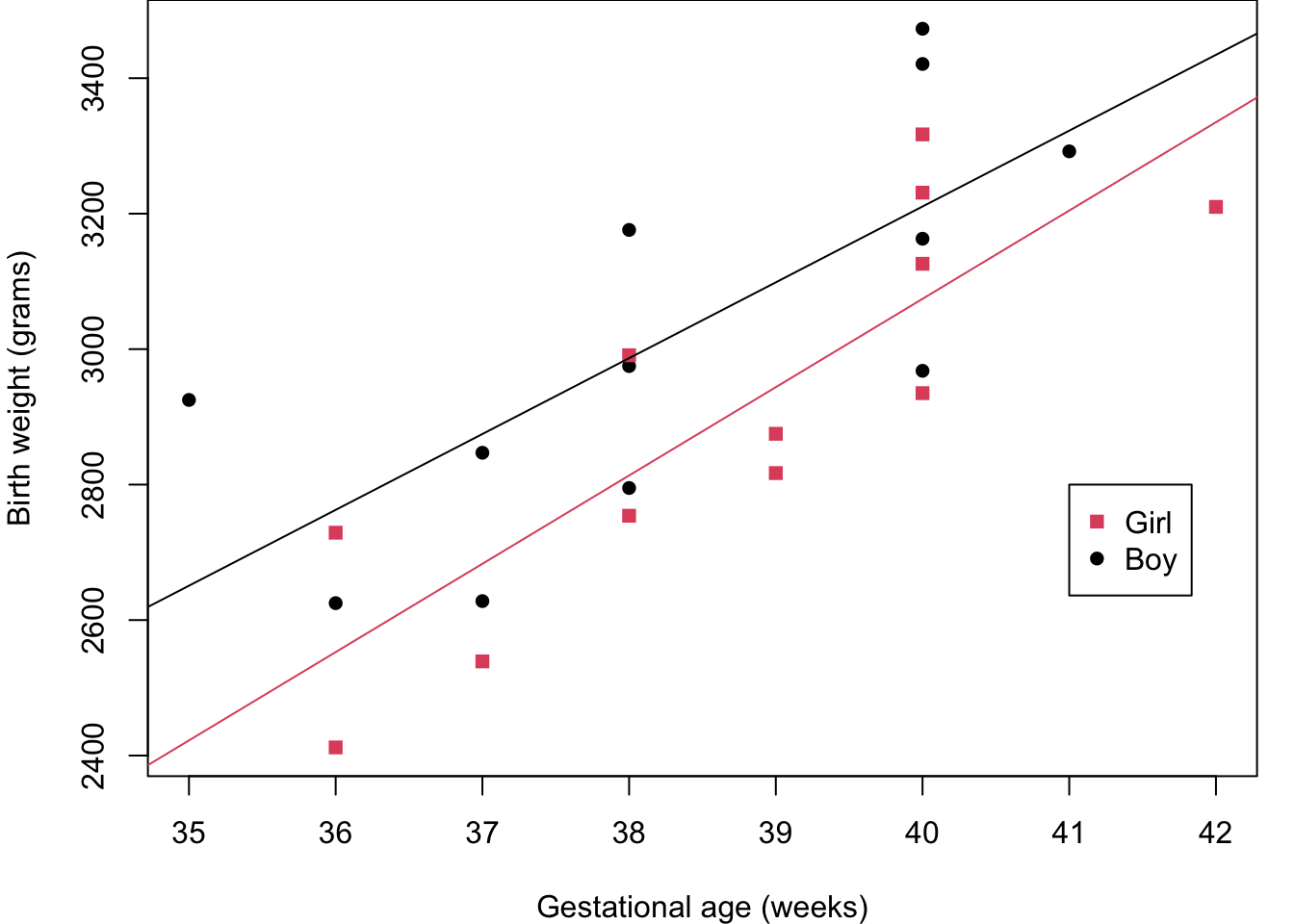

M3.fit = lm(weight~age+sex+age*sex)
abline(M3.fit$coefficients[1],                         M3.fit$coefficients[2], col=2)
abline(M3.fit$coefficients[1]+M3.fit$coefficients[3],
       M3.fit$coefficients[2]+M3.fit$coefficients[4],  col=1)

To choose between nested models we use \(F\)-tests. Let \(R_k\) denote the residual sum of squares (RSS) for Model \(k\) with \(r_k\) residual degrees of freedom. The test statistic for comparing Model \(k+1\) against the simpler Model \(k\) is

\[ F = \frac{(R_k - R_{k+1})/(r_k - r_{k+1})}{R_{k+1}/r_{k+1}}, \]

which under \(H_0\) (Model \(k\) is adequate) follows an \(F_{r_k-r_{k+1},\, r_{k+1}}\) distribution. A large \(F\) (small \(p\)-value) is evidence that the more complex model is needed. In R, anova() computes this table directly.

Fitting Model 1 in R:

Code

birthweight = read.table("https://www.richardpmann.com/MATH3701/Datasets/birthwt.txt", header=T)
fit1 = lm(weight ~ age, data=birthweight)
coefficients(fit1)

(Intercept)         age
 -1484.9846    115.5283

Code

anova(fit1)

Analysis of Variance Table

Response: weight
          Df  Sum Sq Mean Sq F value   Pr(>F)
age        1 1013799 1013799   27.33 3.04e-05 ***
Residuals 22  816074   37094
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

The ANOVA table gives \(F = 27.3\) (\(p < 0.001\)): strong evidence that gestational age is a significant predictor. Fitting Model 2:

Code

fit2 = lm(weight ~ age + sex, data=birthweight)
coefficients(fit2)

(Intercept)         age        sexM
 -1773.3218    120.8943    163.0393

Code

anova(fit2)

Analysis of Variance Table

Response: weight
          Df  Sum Sq Mean Sq F value    Pr(>F)
age        1 1013799 1013799 32.3174 1.213e-05 ***
sex        1  157304  157304  5.0145   0.03609 *
Residuals 21  658771   31370
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

The estimate \(\hat\gamma = 163\) g is the additional birth weight for boys after adjusting for gestational age, and is statistically significant (\(F = 5.01\), \(p = 0.036\)). Comparing Models 2 and 3 is left as an exercise.

Focus on regression quiz

2.3 Types of normal linear model

The dependent variable \(y\) is modelled as a linear combination of \(p\) explanatory variables \(\mathbf{x} =(x_1, x_2,\ldots, x_p)\) plus a random error \(\epsilon \sim N(0, \sigma^2)\). Table 2.2 summarises common special cases.

Table 2.2: Types of normal linear model and their explanatory variable types, where indicator function \(I(x=j)=1\) if \(x=j\) and \(0\) otherwise.

\(p\)	Explanatory variables	Model
1	Quantitative	Simple linear regression \(y=\alpha+\beta x+\epsilon\)
>1	Quantitative	Multiple linear regression \(y=\alpha+\sum_{i=1}^p\beta_i x_i+\epsilon\)
1	Dichotomous (\(x=1\) or \(2\))	Two-sample \(t\)-test \(y=\alpha+\delta\, I(x=2)+\epsilon\)
1	Polytomous, \(k\) levels	One-way ANOVA \(y=\alpha+\sum_{j=1}^k \delta_j\, I(x=j)+\epsilon\)
>1	Qualitative	\(p\)-way ANOVA

For the two-sample \(t\)-test model, observations in the two groups have means \(\alpha\) and \(\alpha+\beta_2\) under the corner constraint \(\beta_1=0\), so \(\beta_2\) is the difference in means relative to a baseline. For one-way ANOVA with \(k\) groups, the corner constraint \(\delta_1=0\) means \(\delta_j\) is the mean difference between group \(j\) and group 1.

2.4 Matrix representation of linear models

All models in Table 2.2 can be written as

\[ \mathbf{Y} = \mathbf{X}\boldsymbol{\beta}+\boldsymbol{\epsilon}, \tag{2.1}\]

where

\(\mathbf{Y}\) is an \(n\times 1\) vector of observed responses;
\(\mathbf{X}\) is an \(n\times p\) design matrix;
\(\boldsymbol{\beta}\) is a \(p\times 1\) vector of parameters;
\(\boldsymbol{\epsilon}\) is an \(n\times 1\) vector of IID \(N(0,\sigma^2)\) errors.

Constructing the design matrix. Start with a column of ones (the intercept). For each quantitative variable add one column of values. For each qualitative variable with \(k\) levels, add \(k\) indicator columns and then delete one to avoid singularity (the corner constraint).

Example: Simple linear regression. For \(y_i = \alpha+\beta x_i+\epsilon_i\):

\[ \mathbf{X}=\begin{bmatrix} 1 & x_1\\ \vdots & \vdots\\ 1 & x_n \end{bmatrix}, \qquad \boldsymbol{\beta}= \begin{bmatrix} \alpha\\ \beta \end{bmatrix}. \]

Example: One-way ANOVA with \(k\) groups. If observation \(i\) is in group \(g_i\), the design matrix has a column of ones plus \(k-1\) indicator columns (after the corner constraint). For a two-group (\(k=2\)) example with \(n=5\) observations:

\[ \mathbf{X}=\begin{bmatrix} 1 & 1 \\ 1 & 1 \\ 1 & 0 \\ 1 & 1 \\ 1 & 0 \end{bmatrix}, \qquad \boldsymbol{\beta}=\begin{bmatrix}\alpha\\\delta_2\end{bmatrix}, \]

where \(\delta_2\) is the mean difference between group 2 and group 1.

OLS estimation. The ordinary least-squares (OLS) estimator is

\[ \hat{\boldsymbol{\beta}} = (\mathbf{X}^\top\mathbf{X})^{-1}\mathbf{X}^\top\mathbf{Y}, \tag{2.2}\]

with fitted values \(\hat{\mathbf{Y}} = \mathbf{X}\hat{\boldsymbol{\beta}} = \mathbf{H}\mathbf{Y}\), where \(\mathbf{H} = \mathbf{X}(\mathbf{X}^\top\mathbf{X})^{-1}\mathbf{X}^\top\) is the hat matrix. The residual vector is \(\mathbf{r} = \mathbf{Y} - \hat{\mathbf{Y}} = (\mathbf{I}-\mathbf{H})\mathbf{Y}\).

Focus on matrix representations quiz

What is the dimension of the design matrix?
What is the distribution of the error term?
Which quantity represents the model parameters?
Which two terms in the model have the same dimensions?
Which of the following is a potential problem when using qualitative variables?

2.5 Model shorthand notation

In R, a qualitative variable is called a factor and its categories are called levels. A convenient compact notation specifies models without writing out the full design matrix. Below, \(E\), \(F\) denote generic variables.

Table 2.3: Model shorthand notation

Notation	Meaning
\(E\)	Include \(E\) (one column if quantitative; \(k-1\) columns if factor)
\(E + F\)	Include \(E\) and \(F\) (no interaction)
\(E : F\)	Interaction of \(E\) and \(F\)
\(E * F\)	Shorthand for \(1 + E + F + E{:}F\)
\(E / F\)	Shorthand for \(1 + E + E{:}F\) (nested model)
\(\text{poly}(E, \ell)\)	Orthogonal polynomial in \(E\) up to degree \(\ell\)
\(-E\)	Remove term \(E\) from the model
\(I(\cdot)\)	Arithmetic expression, e.g. \(I(E*F)\) multiplies two variables

The notation uses ~ as shorthand for “is modelled by”. Examples:

Weight regressed on age and sex, no interaction:
Weight ~ Age + Sex
Wellbeing regressed on age and income with interaction:
Wellbeing ~ Age * Income
Degree class regressed on school and subject nested within school:
DegreeClass ~ School/Subject
Yield regressed on variety and a quadratic in rainfall:
Yield ~ Variety + poly(Rainfall, 2)

Focus on model notation quiz

What R command can be used to convert numerical values into a nominal variable?
Which of the following defines a model where variable Y is regressed on variables V1 and V2, but without an interaction?
Which of the following defines a model where variable Y is regressed on variables V1 and V2, including a constant and an interaction?
Which of the following defines a model regressing Y on the product of V1 and V2?
Which of the following defines a model where variable Y is regressed on a second-order polynomial in V1?

2.6 Fitting linear models in R

The primary command is lm(formula). Key functions for working with a fitted model object (here called my.lm):

Command	Output
`my.lm = lm(y ~ x + a*b)`	Fit the model
`summary(my.lm)`	Parameter estimates, SEs, \(t\)-tests, \(R^2\)
`anova(my.lm)`	ANOVA table with \(F\)-tests
`coefficients(my.lm)`	Parameter estimates
`fitted.values(my.lm)`	Fitted values \(\hat{\mathbf{Y}}\)
`residuals(my.lm)`	Residuals \(\mathbf{r}\)
`df.residual(my.lm)`	Residual degrees of freedom
`model.matrix(y ~ a*b)`	Design matrix
`predict(my.lm, newdata)`	Predicted values at new \(x\) values

Always check residual plots after fitting. Residuals should show no systematic pattern when plotted against fitted values, should be approximately symmetric, and a normal QQ plot should be approximately linear.

Code

set.seed(273686)
x = seq(1, 12, length.out=50)
y = 2 + 0.2*x + rnorm(length(x), 0, 0.2)

my.lm = lm(y ~ x)
summary(my.lm)


Call:
lm(formula = y ~ x)

Residuals:
     Min       1Q   Median       3Q      Max
-0.38790 -0.12026 -0.01578  0.12751  0.44184

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 1.941552   0.062524   31.05   <2e-16 ***
x           0.204299   0.008609   23.73   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.1972 on 48 degrees of freedom
Multiple R-squared:  0.9215,    Adjusted R-squared:  0.9198
F-statistic: 563.1 on 1 and 48 DF,  p-value: < 2.2e-16

Code

par(mar=c(4,4,1,1))

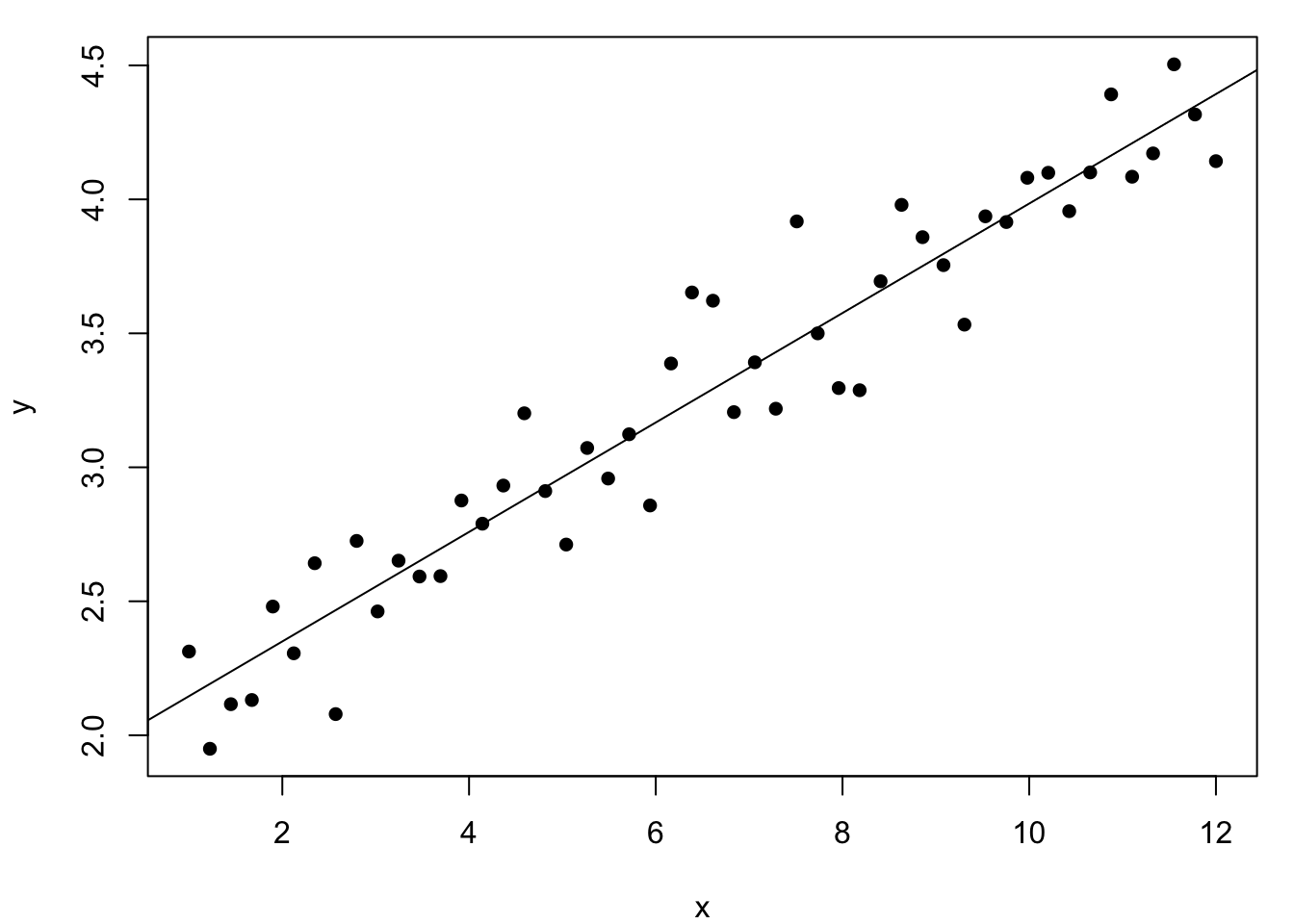

plot(y~x, pch=16); abline(my.lm)

resid.sd = sd(my.lm$residuals)
plot(my.lm$fitted.values, my.lm$residuals, pch=16,
     xlab="Fitted values", ylab="Residuals",
     ylim=0.6*c(-1,1))
abline(h=0, lty=2)
abline(h=2*resid.sd*c(-1,1), lty=2, col="red")

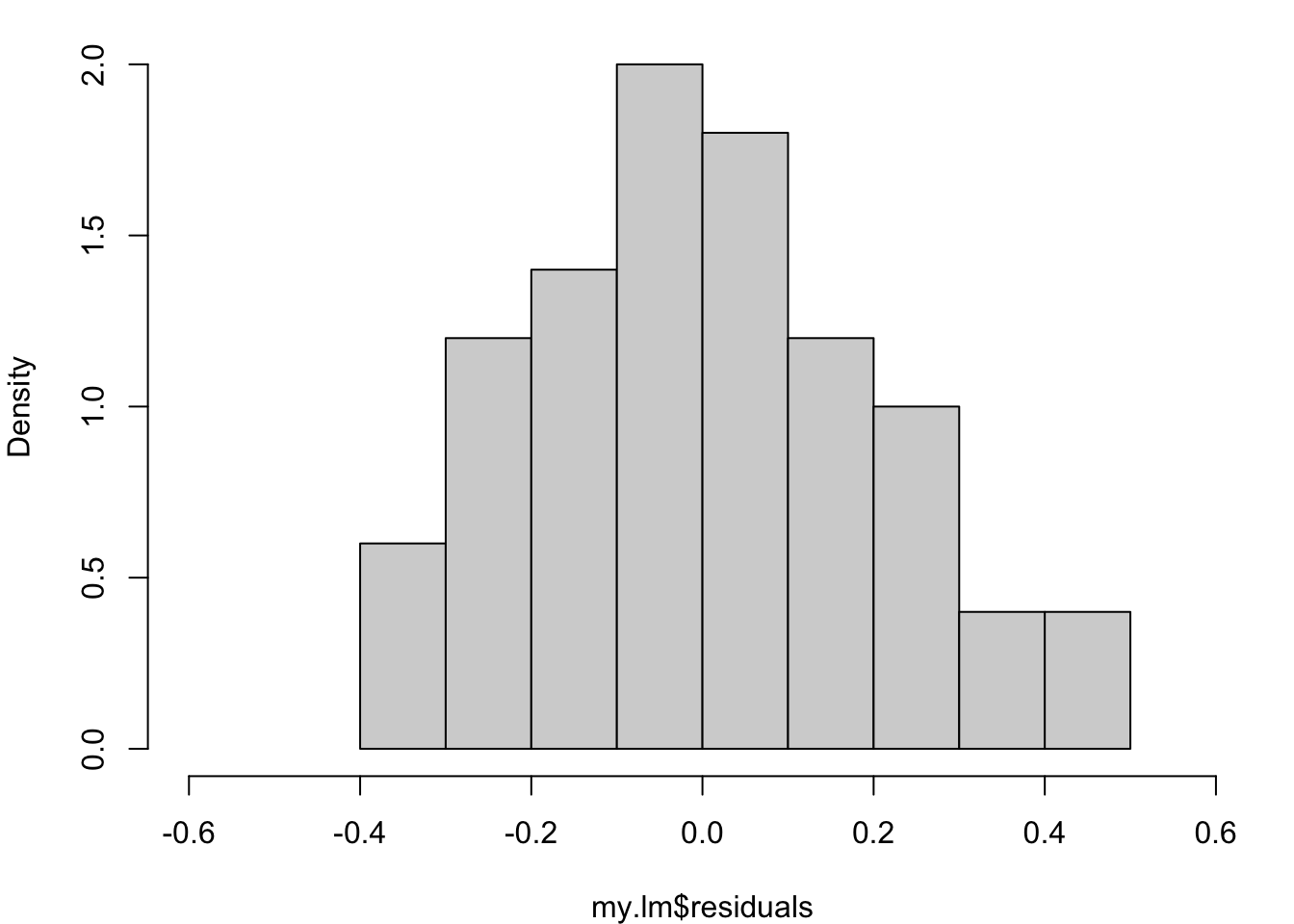

hist(my.lm$residuals, probability=T,
     xlim=0.6*c(-1,1), main="")

qqnorm(my.lm$residuals, main=""); qqline(my.lm$residuals)

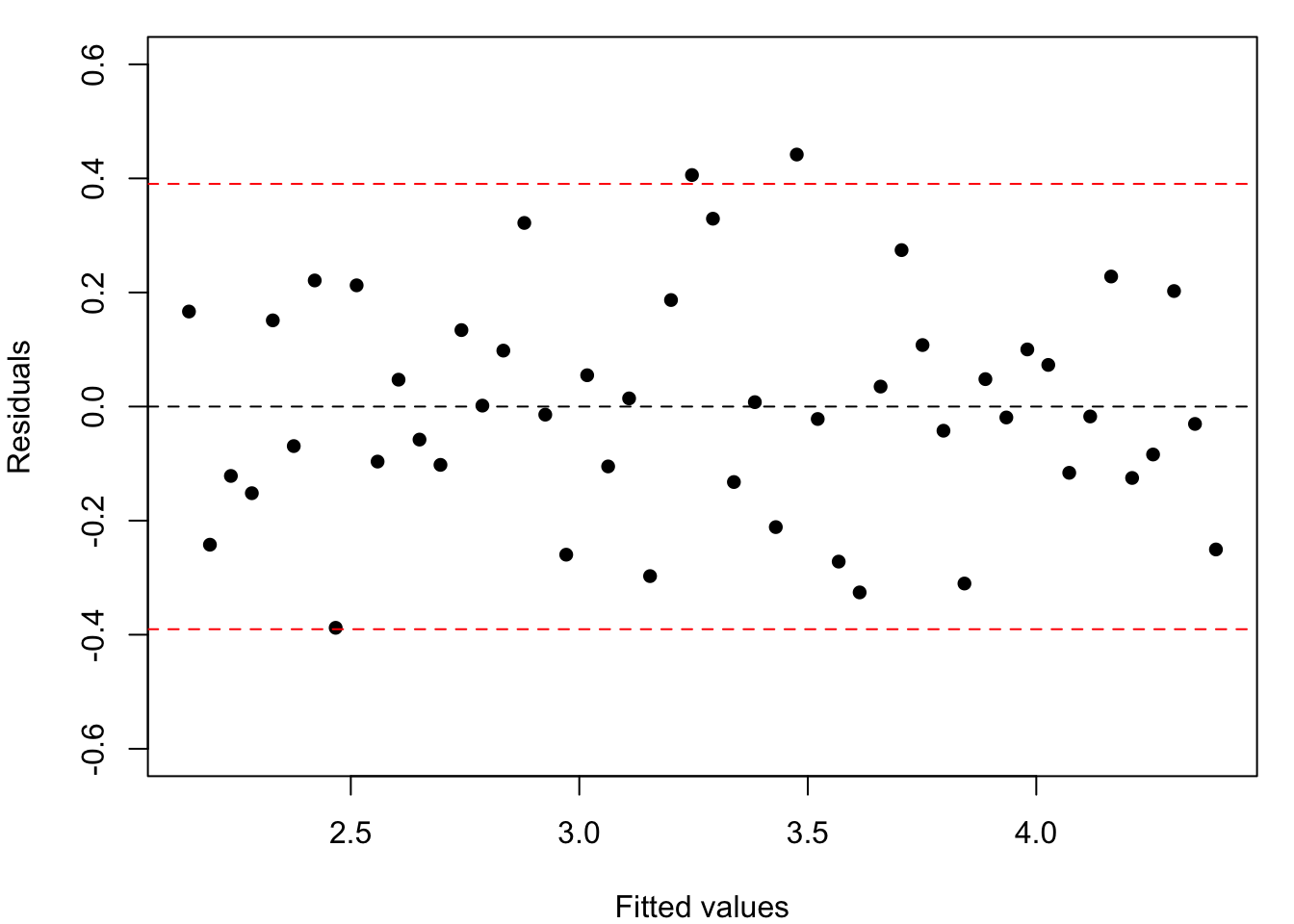

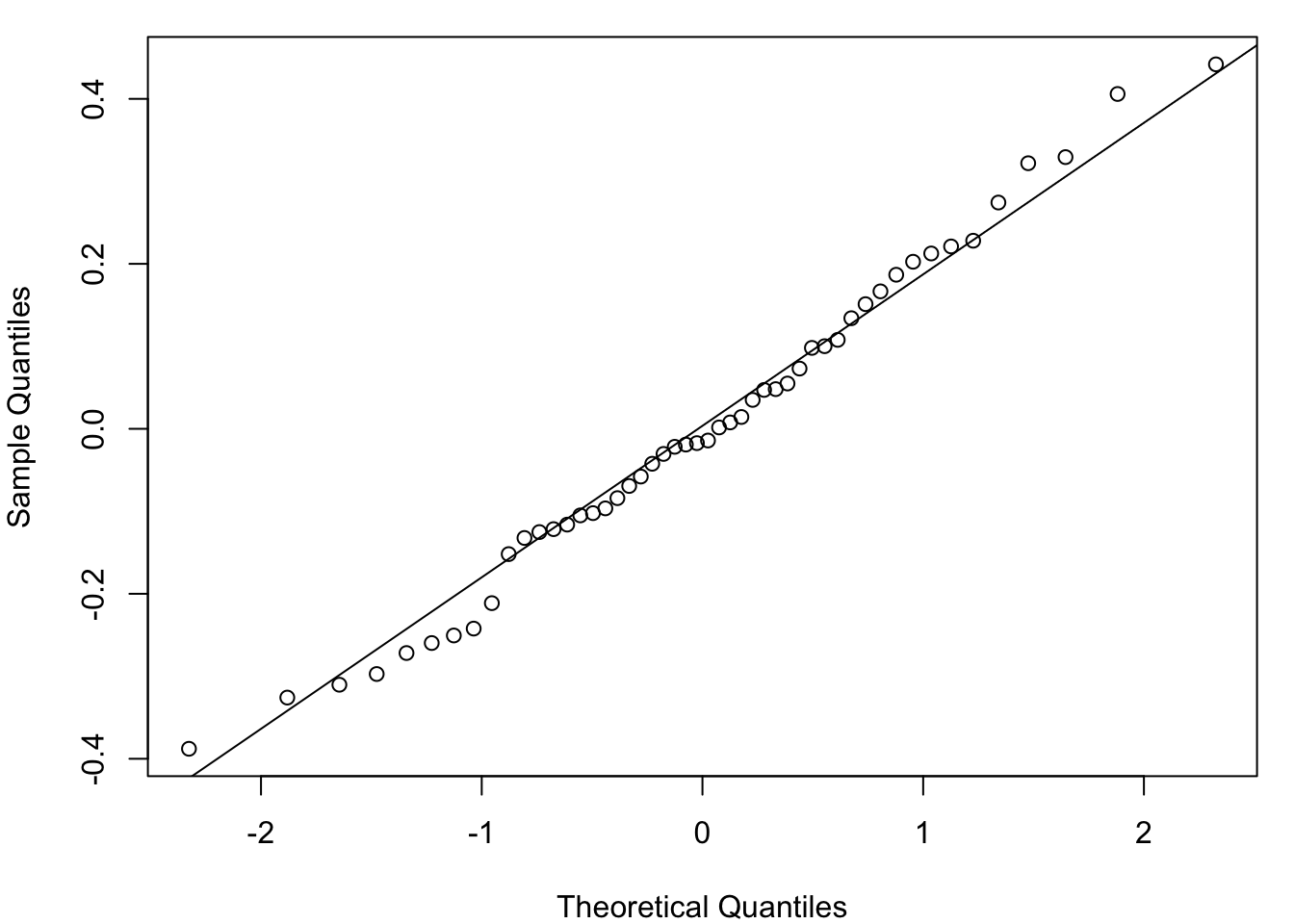

The residual plot shows no systematic pattern and all residuals are within two standard deviations of zero. The histogram and QQ plot support normality. To predict at new values of \(x\):

Code

predict(my.lm, data.frame(x=c(4,6)))

       1        2
2.758747 3.167345

2.7 Ethics in statistics and data science

Note

Directed reading.

In previous modules you will have seen that professional and ethical considerations are important in statistics and data science: how we choose which graph to present, how we handle missing data, and how we deal with suspected outliers. It is important for statisticians and data scientists to be aware of the ethical dimensions of their work.

Roughly speaking, ethics concerns what we ought to do and the kind of person we ought to be. Questions relevant to data science include:

How should we collect data in a way that respects participants?
Why is privacy important? How should data scientists protect privacy?
How can algorithmic bias wrong members of the public?
To what extent are data scientists responsible for the impact of their work?
When and how should data scientists challenge authority in the workplace?

Please keep these issues in mind throughout any data analysis and modelling work. For further discussion, the Royal Statistical Society and the Alan Turing Institute both publish guidance on data ethics.

2.8 Exercises

2.1 The following situations each involve two variables. For each: explore the data with a suitable plot, calculate the correlation, and decide whether a linear model would be appropriate.

Use the data in schoolstudy.csv to investigate the relationship between calorie intake and BMI in 11-year-old children.
Use the data in smartmeter.csv to investigate the relationship between daily electricity and gas consumption in a typical house.
Use the data in housing.csv (2022–23 UK Housing Survey) to investigate the relationship between number of rooms and household income.

For each data set, use read.csv() to load the data, plot() for a scatter plot, cor() for the correlation, and lm() to fit a linear model. Does a straight line seem reasonable?

2.2 An extra model for the birthweight data would be one where \(\texttt{Weight}\) differs by sex but does not depend on gestational age. Write down the model equation, fit it in R, and test whether sex is statistically significant.

The model is \(\texttt{Weight} = \alpha + \gamma\cdot\texttt{Sex}\). Use lm() and anova().

2.3. For each given situation, consider the description and then investigate the suitability of a linear model.

For each given data set, produce an appropriate graph within RStudio, fit a linear regression model and add the fitted model to the graph. Comment on the quality of fit.

Continuing the childhood obesity example, use the data in file schoolstudy.csv to model the relationship between BMI and calorie intake in 11-year old children.
To study the profitability of several iron ore (hematite) extraction quarries, small samples are taken from lorries arriving at an iron purification site. The lorries are open-topped with most travelling less than 20 Km but one quarry is more than 100 Km away. A chemical analysis provides a percentage of pure iron in the sample. Quarries with iron content less than 30% are not considered economically viable. The data file iron.csv contains measurements of percentage pure iron arriving at an iron purification site recorded over a 50 year period. Model the relationship between iron purity and time.
A study aims to investigate osteoporosis in women before and after menopause. The X-rays of a randomly selected sample of patients taking routine mammograms are analysed. The age of the patient and their menopause status are recorded, along with a measure of bone density calculated from the X-ray. Use the data in the file bmd.csv to model the relationship between age and Tscore, noting that a value of below -2.5 indicates osteoperosis, between -2.5 and -1.0 indicates osteopenia whereas above -1.0 is normal.
A primary school head teaching wishes to investigate the relationship between social skills of children and the ages of their brothers and sisters. The hypothesis is that those with older siblings will be better able to deal with social interaction. The file skills.csv contains data on the age of the eldest sibling of a class of 6-year old school children along with a social skills score for each child assessed during the school lunch break. Model the relationship between sibling age and social skills.

2.4 In an experiment to investigate Ohm’s Law, \(V=IR\), the following data² were recorded:

Table 2.4: Experimental verification of Ohm’s Law

Voltage (Volts)	4	8	10	12	14	18	20	24
Current (mAmps)	11	24	30	36	40	53	58.5	70

Does this data support Ohm’s Law? What is the resistance of the material?

Note that Ohm’s Law is a linear function through the origin. To fit a model without intercept, use lm(y ~ x - 1). The resistance is the reciprocal of the estimated slope.

2.5 In an investigation³ into the effect of eating on pulse rate, 6 men and 6 women were tested before and after a meal:

Table 2.5: Pulse rates before and after a meal

Men	before	105	79	79	103	87	97
	after	109	87	86	109	100	101
Women	before	74	73	82	78	86	77
	after	82	80	90	90	93	81

Suggest a suitable model and write down the corresponding design matrix. Test whether the change in pulse rate due to the meal differs between men and women.

The explanatory variables are \(\texttt{Sex}\) (Men/Women) and \(\texttt{Time}\) (before/after), both categorical. Declare them as factors. An interaction between Sex and Time captures whether the before-to-after change differs by sex. Use lm() and anova().

2.6 A laboratory experiment⁴ investigated the effect of seasonal floods on the height of barley seedlings. Three barley varieties (Goldmarker, Midas, Igri) were grown under two watering conditions (Normal and Waterlogged) and on four shelf positions (Top, Second, Third, Bottom). Data are in barley.csv.

Fit appropriate models to test the importance of: (a) watering condition, (b) barley variety, and (c) shelf position. Do not include interactions involving shelf position. If you find a significant interaction between watering condition and variety, interpret the parameter estimates carefully.

Declare all three explanatory variables as factors with as.factor(). Fit a model including main effects and the watering-by-variety interaction with lm(), then use anova() to assess significance.
