13 Choosing the Smoothing Parameter

13.1 Overview

Suppose we are given data $D=\{(x_i,y_i),\,i=1,\ldots,n\}$ and that our model is: \[ y_i = f(x_i) + \epsilon_i,\qquad \epsilon_i\sim\text{N}(0,\sigma^2) \tag{13.1}\] where the $\epsilon_i$ are i.i.d. and $f(x)$ is assumed to be smooth. Given knot positions $\{x_i,\; i=1,\dots,n\}$, we can estimate $f(x)$ with a smoothing spline $\hat{f}_\lambda(x)$.

How then should we choose the value of the smoothing parameter $\lambda$? By setting $\lambda \rightarrow 0$, we obtain exactly the interpolating spline $\hat{f}_0(x)$ and a perfect fit to the data. However, this tends to overfit the data: applying it to a new sample of data where model Equation 13.1 still applies would produce a poor fit. Conversely, by setting $\lambda \rightarrow \infty$, we get: \[\begin{align*} f_\infty(x) &= \begin{cases} \hat{a}_0, & \nu=1,\ p=1\\ \hat{a}_0 + \hat{a}_1 x, & \nu=2,\ p=3. \end{cases} \end{align*}\] Here, $\hat{a}_0=\bar{y}$, for the $\nu=1, p=1$ case, and $\{\hat{a}_0,\ \hat{a}_1\}$, for the $\nu=2, p=3$ case, are the OLS linear regression parameters. If the true $f(x)$ were constant or linear, this solution would be reasonable, but often we are interested in less regular functions.

13.2 Training/test approach

One way to approach estimation of $\lambda$ is to partition the set of indices $I= \{1,\dots,n\}$ into two subsets $I_1$ and $I_2$, where $I_1\cup I_2 = I$ and $I_1 \cap I_2 = \emptyset$. Thus we obtain two datasets:

Training dataset: $D_1 = \{(x_{i},y_{i}),\ i\in I_1\}$,
Test dataset: $D_2 = \{(x_{i},y_{i}),\ i\in I_2\}$.

We fit a smoothing spline $\hat{f}_{\lambda,I_1}(x)$ to the training dataset, and judge the quality of the fit using the test dataset: \[ Q_{I_1:I_2}(\lambda) = \sum_{i\in I_2} \left(y_i - \hat{f}_{\lambda,I_1}(x_i)\right)^2. \tag{13.2}\] We choose $\lambda$ to minimise $Q_{I_1:I_2}(\lambda)$. Many algorithms exist for such minimization, for example through evaluation on a fine grid of $\lambda$ values, although many more computationally efficient algorithms exist.

13.3 Cross-validation or leave-one-out

This is an extreme form of the above principle. The test dataset $D_2$ comprises a single observation, $(x_{j},y_{j})$, for a given value of $j$. The training set $D_1$ is then $D_{-j} = \{(x_{i},y_{i}),\ i \in I_{-j}\}$, where $I_{-j}$ denotes the full set $I$ excluding $j$. Then in a slightly amended notation we can write \[ Q_{-j:j}(\lambda) = \left(y_j - \hat{f}_{\lambda,-j}(x_j)\right)^2 \] to assess the quality of fit. Of course, $j$ is arbitrary, so we repeat this process for each $j\in\{1,\dots,n\}$ then average the assessments to form the ordinary cross-validation criterion: \[ Q_{OCV}(\lambda) = \frac{1}{n} \sum_{j=1}^n \left(y_j - \hat{f}_{\lambda,-j}(x_j)\right)^2. \tag{13.3}\]

We then choose the value $\hat{\lambda}$ which minimises $Q_{OCV}(\lambda)$. Hopefully, a plot of $Q_{OCV}(\lambda)$ will appear as in Figure 13.1, but there is no theoretical guarantee that this curve will have a unique turning point, making it difficult to locate the minimum.

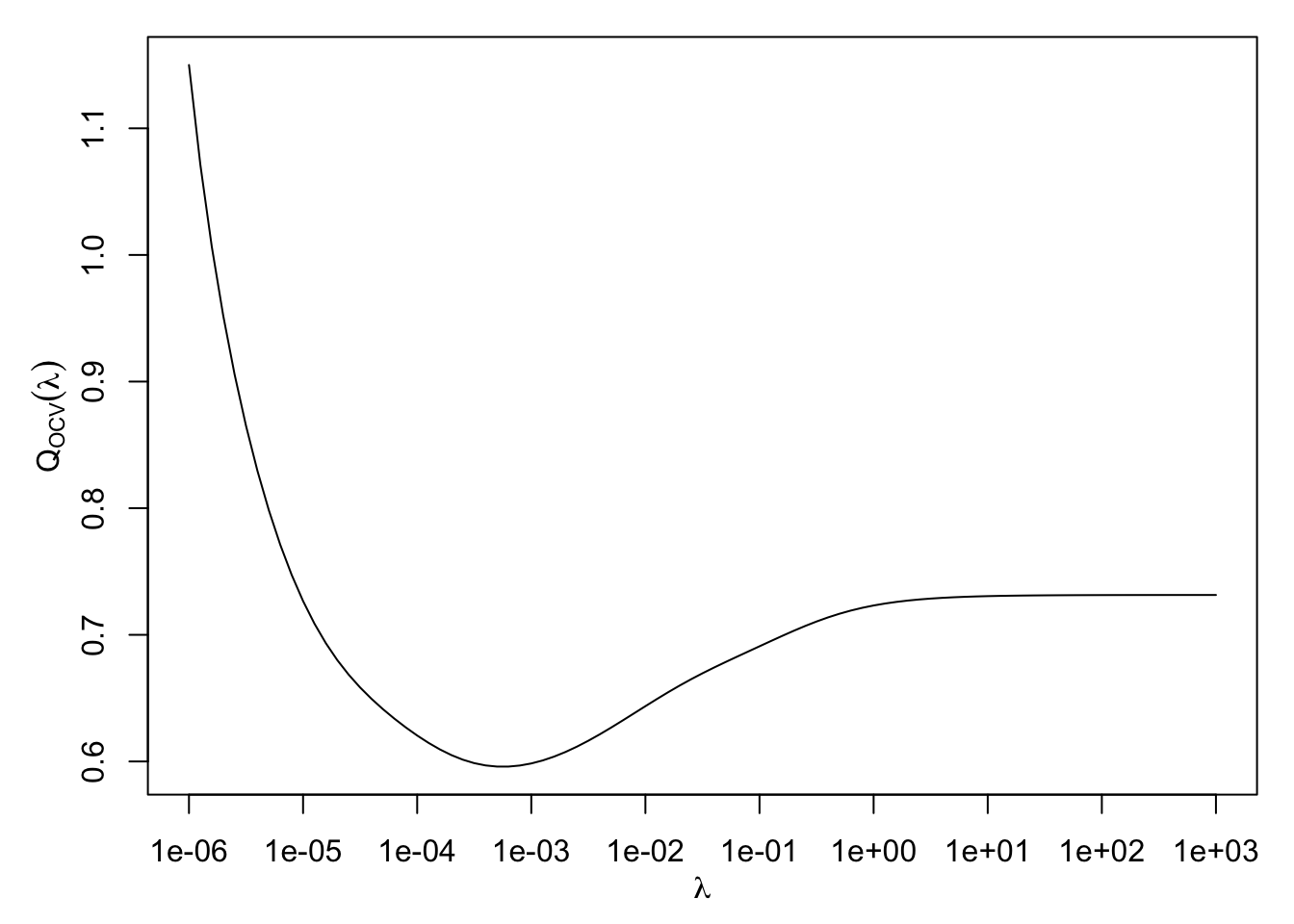

Figure 13.1: Ordinary cross-validation plot.

At first sight, evaluation of $Q_{OCV}(\lambda)$ for a given $\lambda$ appears computationally intensive: we must compute $n$ different smoothing solutions, each corresponding to one of the left-out data points. Fortunately, there is a computational trick which enables us to compute $Q_{OCV}(\lambda)$ directly from the smoothing spline solution constructed from the whole dataset.

13.4 The smoothing matrix

Here we show, for a given value of the smoothing parameter $\lambda$ and the index $\nu \geq 1$, that the fitted value $\hat{f}_\lambda(x_k)$ at each data location $x_k$ may be written as a linear combination of the observations, $y_1,\dots,y_n$.

Recall from Proposition 12.3 that the smoothing spline $\hat{f}_\lambda(x)$, which minimises the penalised sum of squares criterion Equation 12.2 for a given value of the smoothing parameter $\lambda$, has coefficients $\hat{\mathbf{a}}, \hat{\mathbf{b}}$ where \[ \begin{bmatrix} \hat{\mathbf a} \\ \hat{\mathbf b} \end{bmatrix} = M_{\lambda}^{-1} \begin{bmatrix} {\mathbf 0} \\ {\mathbf y} \end{bmatrix} \quad \text{where} \quad M_{\lambda} = \begin{bmatrix} 0 & L_\nu \\ L_\nu^T & K_\nu+\lambda^* I_n \end{bmatrix}. \]

The fitted values of the smoothing spline at the data locations can be represented in matrix form as \[ \mathbf{\hat{f}} = \left[ \begin{array}{c}\hat{f}(x_1) \\ \vdots \\ \hat{f}(x_n)\end{array} \right] = K_\nu \, {\hat {\mathbf b}} + L_\nu \, {\hat {\mathbf a}} = \begin{bmatrix} K_\nu & L_\nu \end{bmatrix} \begin{bmatrix} M_\lambda^{12} \\ M_\lambda^{22} \end{bmatrix} \mathbf{y}, \] where $M_\lambda^{-1}$ has been partitioned in the form \[ M_\lambda^{-1} = \begin{bmatrix} M_\lambda^{11} & M_\lambda^{12} \\ M_\lambda^{21} & M_\lambda^{22} \end{bmatrix}, \] where $M_\lambda^{12}$ is $\nu \times n$ and $M_\lambda^{22}$ is $n \times n$.

It can be shown that the matrix \[ S_\lambda = \begin{bmatrix} K_\nu & L_\nu \end{bmatrix} \begin{bmatrix} M_\lambda^{12} \\ M_\lambda^{22} \end{bmatrix} \] is a symmetric positive definite matrix for $\lambda > 0$, called the smoothing matrix. Then $S_\lambda$ connects the data $\mathbf{y}$ to the fitted values through \[ \mathbf{\hat f} = S_\lambda \, \mathbf{y}. \tag{13.4}\] That is, the fitted values are a simple linear function of the data.

13.5 Effective degrees of freedom

How many degrees of freedom are there in the smoothing spline? There are altogether $n+\nu$ parameters, $\nu$ in $\mathbf{a}$ and $n$ in $\mathbf{b}$, but these are not completely free.

We showed earlier that as the smoothing parameter $\lambda\rightarrow \infty$, the smoothing spline $\hat{f}(x)$ becomes the least-squares regression solution for model formula $y \sim 1$ when $\nu=1$, or model formula $y \sim 1+x$ when $\nu=2$. Thus, when $\lambda= \infty$, the degrees of freedom in the spline is $\nu$. We also showed that when $\lambda=0$, the smoothing spline $\hat{f}(x)$ becomes the interpolating spline, for which the degrees of freedom is the number of observations, $n$.

Thus, intuitively, for values of $\lambda$ between the extremes of $0$ and $\infty$, the spline degrees of freedom should lie somewhere between $\nu$ and $n$; the greater the smoothing, the fewer the effective degrees of freedom. How can we capture this notion precisely?

A clue comes from Ordinary Least Squares (OLS) regression, in which the fitted values are given by \[ \hat{\mathbf{y}} = X (X^T X)^{-1} X^T \mathbf{y} = H \mathbf{y}, \] where $X$ is the $n \times p$ design matrix and $p$ is the number of model parameters. Here, \[ H = X (X^T X)^{-1} X^T \] is called the hat matrix, which linearly maps the data $\mathbf y$ onto the fitted values $\hat{\mathbf{y}}$. Using the property that $\text{trace}(QR) = \text{trace}(RQ)$ for matrices $Q,R$ of conformable dimensions, the trace of the hat matrix is: \[\begin{align*} \text{trace}(X(X^T X)^{-1} X^T) &= \text{trace}((X^T X)^{-1} X^T X)\\ &= \text{trace}(I_p)\\ &= p, \end{align*}\] where $I_p$ is the $p \times p$ identity matrix. Thus, for OLS regression, the trace of the hat matrix equals the number of model parameters.

Now in Equation 13.4 we see that the smoothing matrix $S_\lambda$ takes the role of a hat matrix, since it linearly maps the data onto the fitted values. This suggests that, for the smoothing spline, we can calculate an effective number of degrees of freedom as: \[ \text{edf}_\lambda = \text{trace} \, S_\lambda. \tag{13.5}\] It can be shown from the limiting behaviour of the smoothing splines as $\lambda \rightarrow \infty$ and $\lambda \rightarrow 0$ that $\text{edf}_\infty = \nu$ (the number of parameters in the OLS solution) and $\text{edf}_0 = n$ (the number of parameters in the interpolating spline).

13.6 Generalised Cross-Validation

The cross-validation criterion $Q_{OCV}(\lambda)$, defined in Equation 13.3, is used to set the smoothing parameter, $\lambda$. However, as noted in Section 13.3, using Equation 13.3 to compute $Q_{OCV}(\lambda)$ would be impractical for large $n,$ since it would require fitting a new smoothing spline $\hat{f}_{\lambda,-j}$ for each leave-one-out dataset $I_{-j}$.

Fortunately, it is possible to compute $Q_{OCV}(\lambda)$ directly from the spline $\hat{f}_{\lambda}$ fitted to the full dataset. It can be shown that Equation 13.3 can be rewritten: \[ Q_{OCV}(\lambda) = \frac{1}{n} \sum_{j=1}^n \left(\frac{y_j - \hat{f}_{\lambda}(x_j)}{1-s_{jj}}\right)^2, \tag{13.6}\] where $\hat{f}_{\lambda}(x_j)$ is the full-data fitted spline value at $x_j$ given by Equation 13.4, and $s_{jj}$ is the $j$th diagonal element of the smoothing matrix $S_\lambda$.

Prior to the discovery of algorithms to compute Equation 13.6 quickly, a computationally efficient approximation to the cross-validation criterion Equation 13.3 was proposed, called the Generalised Cross-Validation criterion (GCV): \[ Q_{GCV}(\lambda) = \frac{ \frac{1}{n} \sum_{j=1}^n \left(y_j - \hat{f}_{\lambda}(x_j)\right)^2}{\left(1-\tfrac{1}{n}\text{trace}(S_\lambda)\right)^2}. \tag{13.7}\] Thus Equation 13.7 replaces $s_{jj}$ in Equation 13.6 with the average of the diagonal elements of $S_\lambda$, which equals $\tfrac{1}{n}\,\text{edf}_\lambda$. A low value of $\text{edf}_\lambda$ will deflate $Q_{GCV}(\lambda)$, making that value of $\lambda$ more favourable.

In principle, OCV supplants GCV, but GCV is still used as it is numerically more stable. In particular, GCV is used in the mgcv package, which is discussed in the next chapter.

13.7 Exercises

13.1 The file bmd.csv (https://www.richardpmann.com/MATH3701/Datasets/bmd.csv) contains bone mineral density T-scores for $n=66$ women aged between 40 and 70, along with an indicator of whether each woman has been through menapause.

Read in the data and produce a scatter plot of Tscore against age. Comment on the shape of the relationship: does it look linear?
Fit a cubic smoothing spline of Tscore on age using smooth.spline(), first specifying a very small value of the smoothing parameter (e.g. $\lambda=10^{-6}$) and then a very large value (e.g. $\lambda=10$). Overlay both fits on your scatter plot and comment on the over- and under-fitting you observe.
Now fit the smoothing spline letting R choose the smoothing parameter automatically by generalised cross-validation (the default behaviour of smooth.spline()). Report the selected value of $\lambda$ (fit$lambda) and the effective degrees of freedom (fit$df). Does the fitted curve look reasonable?
By trying a few different values of $\lambda$ between the two extremes used in (b) (e.g. a grid such as 10^seq(-6, -1)), choose by eye the value that you think gives the best-looking fit to the data. Produce a plot of the residuals from this fit against age, and comment on whether they look randomly scattered around zero or show any pattern.
Compare the GCV-selected effective degrees of freedom from (c) to the two extreme cases $\text{edf}=\nu$ and $\text{edf}=n$ discussed in Section 13.5. Where does the GCV choice lie, and what does this suggest about the relationship between age and bone density?

Use read.csv() to load the data; age is the explanatory variable and Tscore the response. For (b), (c) and (d), smooth.spline(data$age, data$Tscore, lambda = ...), omitting lambda lets R choose it automatically via GCV. Residuals from a smooth.spline fit can be extracted with residuals(fit).

13.2 The file iron.csv (https://www.richardpmann.com/MATH3701/Datasets/iron.csv) records an annual measurement, iron, for each Year from 1950 to 1999 ($n=50$).

Plot iron against Year. Does a linear trend look appropriate, or is a smoothing spline needed?
Using the training/test approach of Section 13.2, hold out the final 10 years (1990–1999) as the test set $I_2$ and fit smoothing splines to the remaining $n-10$ years (the training set $I_1$) over a grid of $\lambda$ values, e.g. 10^seq(-4, 4, by = 0.5). For each $\lambda$, compute the test-set criterion $Q_{I_1:I_2}(\lambda)$ from Equation 13.2 and plot it against $\lambda$ on a log scale.
Report the value of $\lambda$ that minimises $Q_{I_1:I_2}(\lambda)$, refit the smoothing spline to the full dataset using this $\lambda$, and plot the resulting fit.
Now fit smooth.spline() to the full dataset letting R choose $\lambda$ by GCV. How does the GCV-selected $\lambda$ compare to the one you found using the training/test approach in (c)? Which approach do you find more reliable here, and why?

Use read.csv() to load the data. For (b), fit with smooth.spline(train$Year, train$iron, lambda = lam) for each candidate lam in your grid, then use predict() at the held-out Year values to compute the sum of squared errors against the held-out iron values. For (d), smooth.spline(data$Year, data$iron) with no lambda argument selects $\lambda$ via GCV by default.
